Description

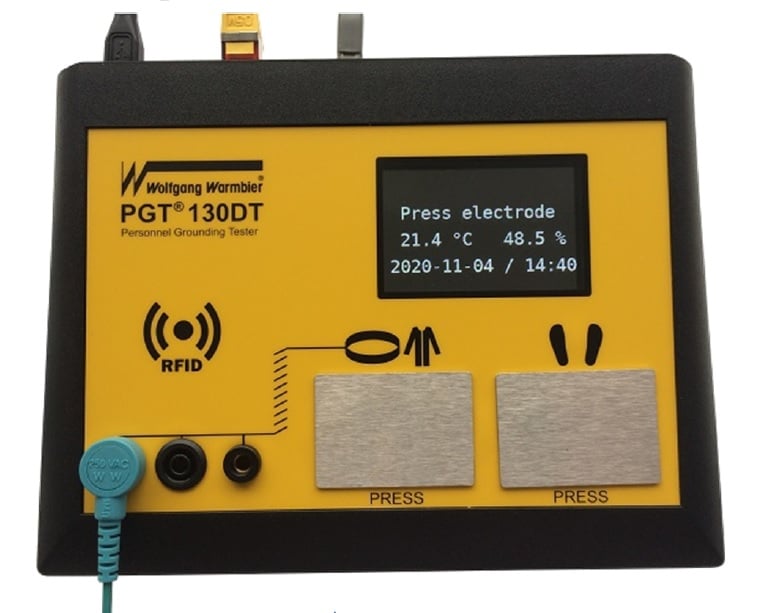

The PGT®130.DT is a compact test system for precise ESD measurement and documentation of
ESD shoes, wrist strap and smock according to DIN EN 61340-5-1 and ANSI ESD S20.20.
Multiple devices can be networked together and managed by DataTermD software. User data
and measurement data can be managed central.
Device configuration and measurement data retrieval can be achieved with a web browser from
any computer when connected to a network.
Test data can be imported to Time Attendance or Access Control systems via network interface.
- User identification via integrated RFID reader or external HID compatible USB input device
i.e., barcode scanner, keyboard or magnetic stripe reader.
- The test result is indicated with audible and visual signals. A positive or negative result is
displayed via a color change “green/red” with measured values.
- The measurement takes place via sensor surfaces
- Wrist strap, right and left shoe testing is simultaneously possible by separate measuring
circuits
- In combination with a barrier gate, the footwear measurement can be performed in series
without pressing a sensor surface (hands-free mode).
- Lower limit disabling for footwear- and wrist-strap test
- A relay with a dry contact provides the connection to a door opening system.
- The unit can be used on bench tops or as a wall mounted unit (Wall mounting requires an
additional wall mounting plate)
- The device is configurable locally or via network
- Mixed operation is possible with PGT®120.COM Data terminal DT2, DT3 and TC18Categoria:
